Odorless, Tasteless, Biodegradable Smart Flush-Free Toile

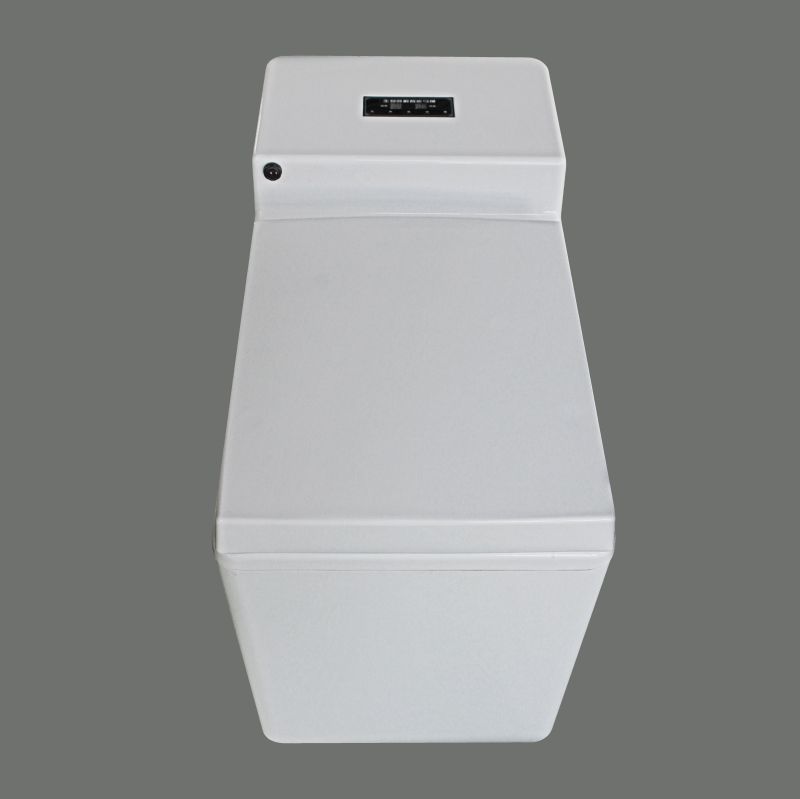

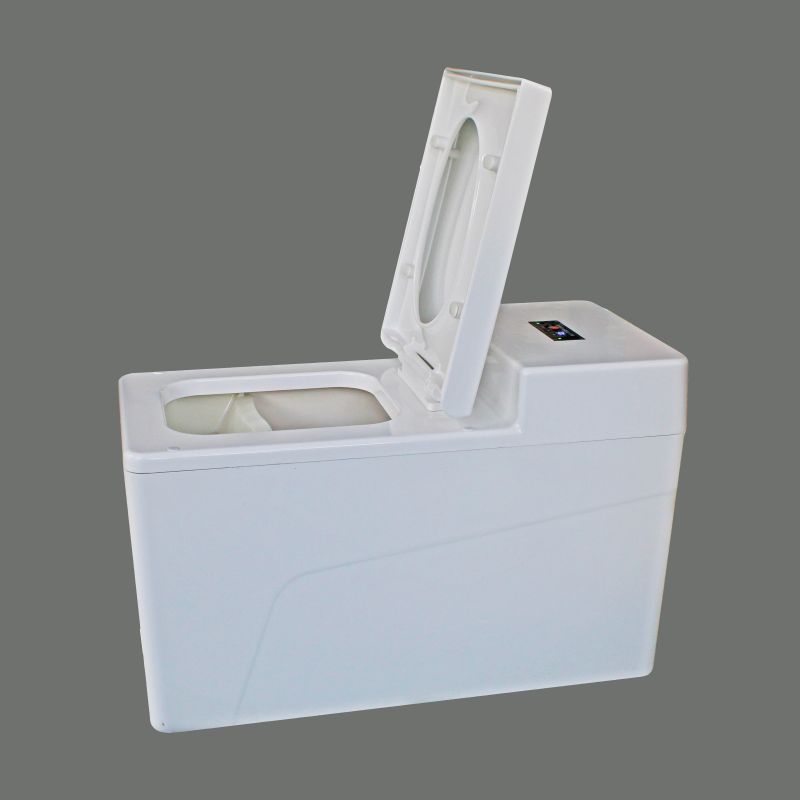

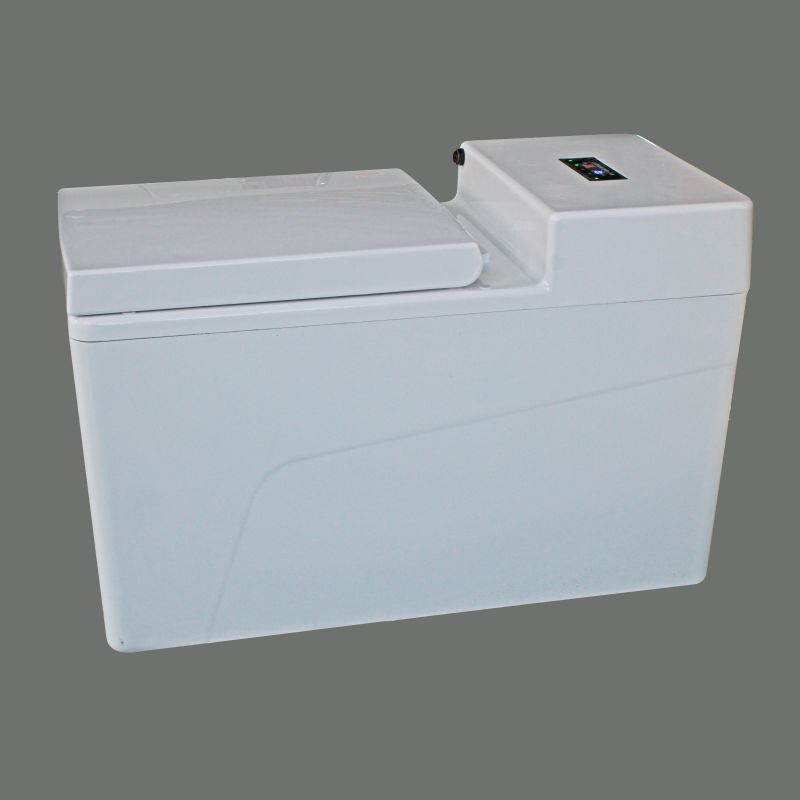

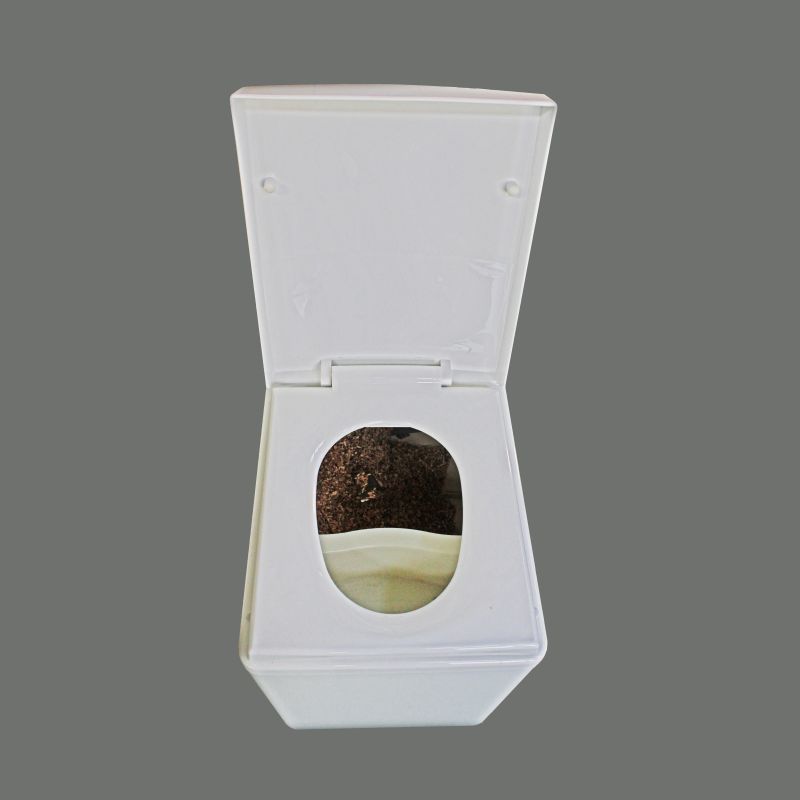

This biodegradable smart toilet is independently developed by our company and designed according to ergonomics. This toilet has a beautiful appearance, suitable size,and installation without pipe network, use water free flushing.Biodegradation is used to break down waste into carbon dioxide and water. The solid residue after treatment has no flies, no maggots, no odor, and is harmless to human body and the environment. Not only in line with national standards, the overall performance has reached the national advanced level. The treated solid residue is also an organic fertilizer that can be returned to the field.

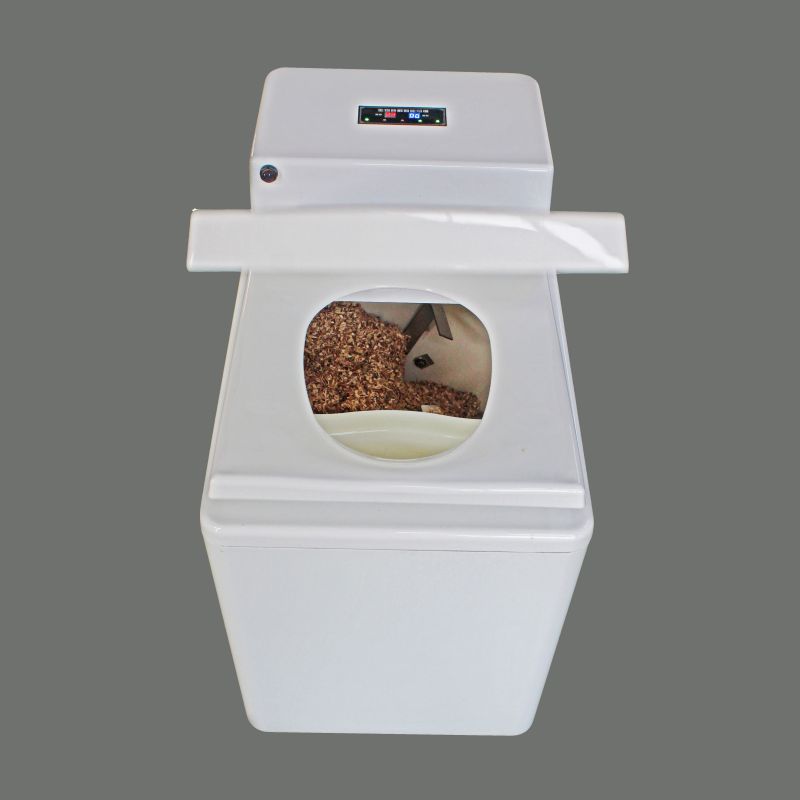

Specifically, after people defecate, the excrement falls into the biological tank through mechanical devices inside the toilet. The tank is filled with high-efficiency degradation microorganisms that cultivate and degrade excreta effectively. After the bacteria decompose it, most of the waste turns into small amounts of organic fertilizer for resource recycling. Biodegradable toilets do not need water flushing, saving a lot of water resources. There is also heating dehumidification and insulation function design inside the biological cabinet, at the same time, bio-deodorant agent ensures odorless in the toilet environment.Biodegradable toilets adopt modular design, which facilitates installation and relocation, so as to adapt to different site requirements.

    description1

    description2

    FEATURES

    1. Automatic temperature:
    Parameters are set according to different environmental conditions, and the heating device is automatically started and stopped by the bin sensor. Maintain the best condition for biological bacteria to reproduce and work.

    2. Automatic constant humidity:
    The sensor automatically detects the environment in the silo and automatically starts and stops the constant humidity system according to the set value. Maintain the best state of biological bacteria reproduction, accelerate the decomposition of biological bacteria.

    3. Automatic timing mixing:
    According to the different frequency of use, automatic stirring is set to maintain the ventilation of the filler.

    4. Open cover safety protection:
    Prevent unnecessary injury caused by the internal stirring of the toilet.

    5. Equipment failure self-test:
    The control system regularly checks the running state. Automatic transmission of device fault information with online location management.

    6. Cloud Data transmission:
    Use the big data cloud transmission platform to monitor and upload the daily operating status data of the toilet in real time, so that the maintenance team can understand the operation of the equipment and respond in time.

    7. Locate online management:
    One toilet one ID, through information networking, global positioning online management, timely understanding of the use of the toilet.

    8. Internet of Things:
    Through the system transmission data analysis, combined with regional environment and climate characteristics, timely adjustment of parameters. Do not leave the house can maintain the whole country, reduce after-sales costs, scientific maintenance.

    Key attributes

    Warranty

    1 Year

    Project Solution Capability

    Others

    Application

    Outdoor

    Design Style

    Modern

    Brand Name

    LIMO

    Model Number

    LMO-002

    Place of Origin

    Shandong, China

    After-sale Service

    Online technical support

    Advanced Function

    Automatic Deodorization

    Buffer Cover plate

    Yes

    Flushing Flowrate

    0

    Flushing Button Type

    None

    length

    810mm

    width

    400mm

    height

    510mm

    weight

    43kg

    filler

    5kg

    Material

    FS

    Capacity

    0.053m³

    Voltage

    220v

    Remote Control

    Not Included

    Toilet seat

    optional smart, non-smart

    Installation Type

    Floor Mounted

    Toilet Bowl Shape

    Square

    Toilet seat

    optional smart, non-smart

    Components and introduction

    • componentsa155b

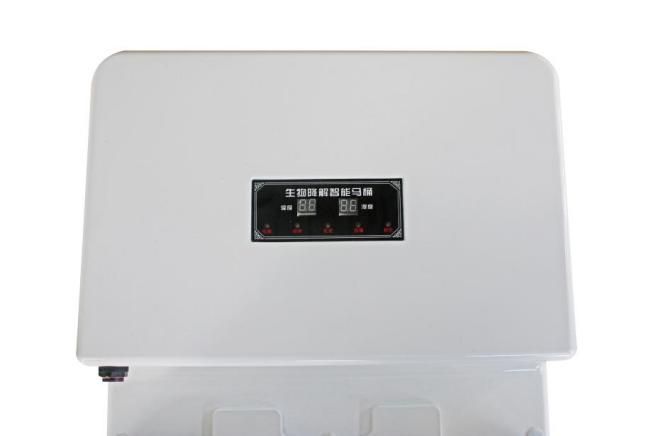

      Photoelectric switch

      • Sensing signal.
      01
    • componentsa210x

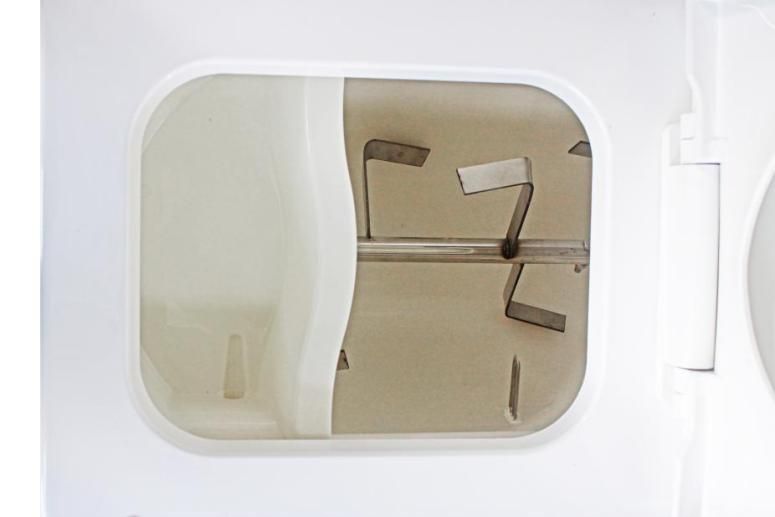

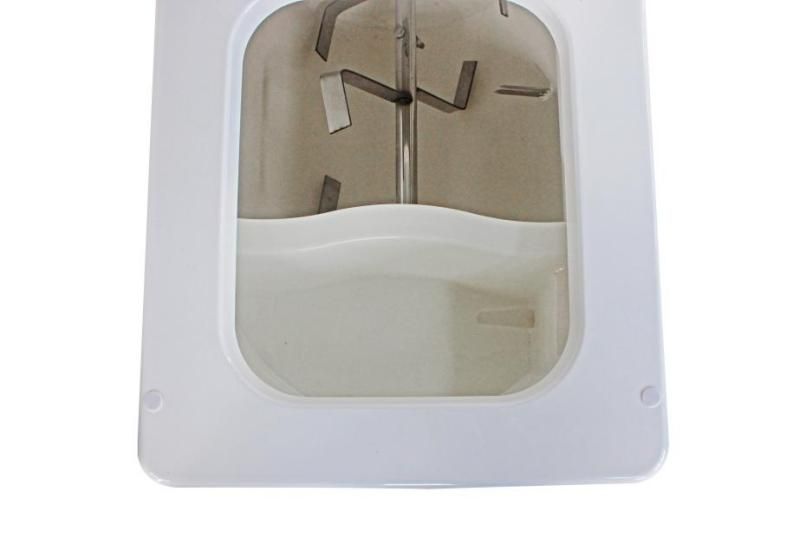

      Stirring device

      • Can fully mix and stir the excrement and bacterial material evenly, so that the biological bacteria will decompose the stool more thoroughly and quickly.
      02
    • componentsa38l1

      Temperature and humidity sensor

      • Real-time detection of the temperature and humidity in the degradation chamber ensures that the biological bacteria are the most active, and the waste is broken down more thoroughly and quickly.
      03
    • componentsa4qab

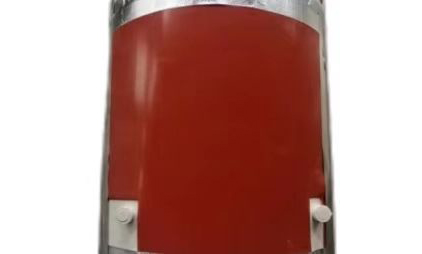

      Heating sheet

      • According to the intelligent system to detect the temperature and humidity in the bin, automatically start and stop the heating function. Ensure that the temperature and humidity in the bin is stable, and the activity of biological bacteria is strongest, so that the degradation effect is best.
      04
    • Components and introduction5xck

      Exhaust system

      • The powerful exhaust system ensures that the smell in the bin is quickly discharged outside in time, so as to achieve indoor odorless and tasteless.

      Motor

      • Drive the stirring device to stir, so that the excrement and bacterial material are fully mixed, so as to treat the excrement harmlessly.

      Power cord

      • Turn on the power and the toilet starts working.
      05
